TECHNICAL SPECIFICATIONS
| ||||

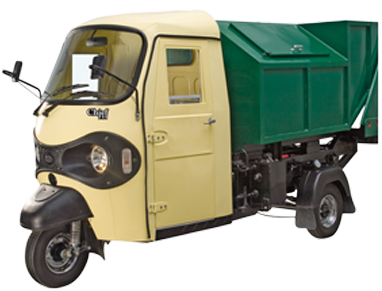

| MODEL | Chief - 711C, Garbage Tipper |
WHEELS & TYRES | ||
| ENGINE | Greaves Cotton | SIZE | 4.5 x 10”, 8 ply rating | |
| TYPE | 4 Strokes, Single Cylinder Air Cooled, Diesel | ELECTRICAL SYSTEM | ||
| BORE X STROKE | 85mm X 90mm | SYSTEM VOLTAGE | 12V | |
| DISPLACEMENT | 510 cc | BATTERY | 55Ah | |
| COMPRESSION RATIO | 17.5 : 01 | LIGHTS | Twin Head Lamp 12V, 35W, Front & Rear Turn Signal, Parking & Brake Stop Light | |
| MAX. OUTPUT | 7.5 Kw @ 3000 rpm | SWITCHES | Different Switches for Different Electrical Items |
|
| MAX. TORQUE | 27 Nm @ 1800 -2400 rpm | STARTING | Self / Electric | |
| AIR CLEANER | Wet | WIPER MOTOR | Yes | |
| CLUTCH | Dry Type (Single Plate) | FUEL TANK | ||
| CAPACITY | 10 Ltr. | |||
| TRANSMISSION | DIMENSIONS | |||
| NO. OF GEARS | 4 Forward + 1 Reverse | WHEEL BASE | 2265 mm | |
| GEAR TYPE | Mechanical Selective, Constant Mesh |
OVERALL LENGTH | 3800 mm | |
| STEERING | OVERALL HEIGHT | 1855 mm | ||
| TYPE | Steering Wheel Worm & Roller Wheel Type |
OVERALL WIDTH | 1570 mm | |
| SUSPENSION | WHEEL TRACK | 1340 mm | ||
| CONTAINER INTERNAL | 1500 x 1400 x 700 mm | |||
| FRONT | Helical Coil Spring with 2 Shock Absorbers | MIN. GROUND CLEARENCE |
160 mm | |
| REAR | Leaf Spring with Shock Absorber | WEIGHT | ||
| SHOCK ABSORBERS | Telescopic Hydraulic | FAW MAX. | 360 Kg. | |
| BRAKES | RAW MAX. | 840 Kg. | ||
| SERVICE BRAKERS | Foot Operated Internally Expanding Shoe Type Hydraulic Brakes |
KERB WEIGHT | 500 Kg. | |
| PARKING BRAKE | Hand Operated Mechanical Brake on Rear Wheel | GROSS WEIGHT | 1000 Kg. | |
| MAX. GVW | 1200 Kg. | |||
| MECHANISM OF TIPPER | ||||
| PUMP | Hydraulic Type, Flow 6 LPM |
|||
| CONTROL VALVE | Spool Type, Flow 40 LPM | |||
| HYDRAULIC OIL | Grade 68 | |||
| HYDRAULIC CYLINDER | 80 mm bore | |||
| SEATING CAPACITY | Driver + 1 | |||
 |
 |
 |
 |
 |
Front Dashing Show |

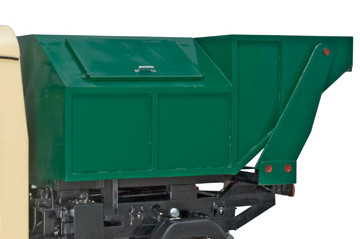

Side Loading Capacity |
Heavy Front Suspension |
Attractive Dashboard |
Car Like ABC
Pedal assy |
